Demining Machine

PRIMETECH-PT300 D:Mine

Print Page

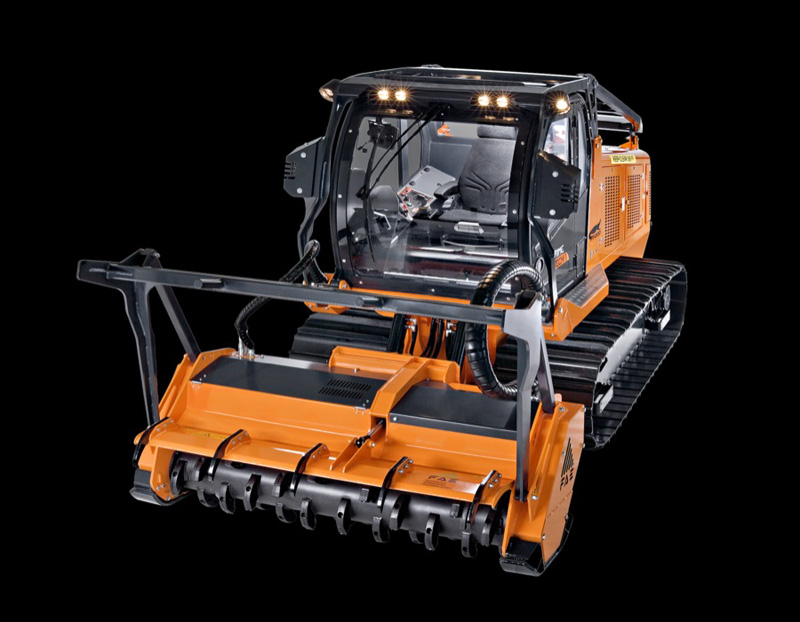

PRIMETECH-PT300 D:Mine

Vehicle with 275 HP engine, remote controlled within a range of 1000 meters. Equipped with the

FAE 300/TD tiller with a working width of 2500 mm and a depth of up to 250 mm, depending on the

conditions, it can reach a daily productivity of up to 25000 m².

The vehicle, which is equipped with a type D4 undercarriage, exerts an extremely low ground pressure

(only 0.26 kg / cm ²) and thanks to the oscillating undercarriage, maintains excellent mobility

on land with steep slopes, swamplands and areas that are particularly diffi cult (presence of mud

and snow).

Service, Training, and Support

UNMATCHED VERSATILITY

Thanks to a variety of heads available, specifi cally designed by FAE for use in different fi elds, ALL the

PrimeTech tracked carriers are extremely versatile vehicles. There are in fact many other possible

uses besides demining:

APPLICATIONS WITH FORESTRY MULCHER:

• Activities of deforestation and land clearing, land preparation for construction projects

(roads, railways, power lines, pipelines, etc.).

• Creating fi re suppression lines and for fi re prevention acivities.

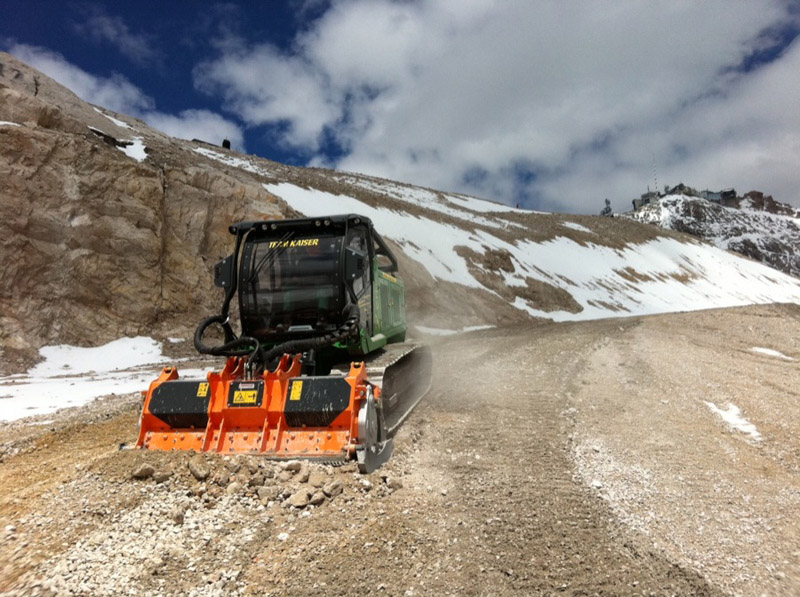

APPLICATIONS WITH STONE CRUSHER HEAD:

• Milling of asphalt and rock for road construction.

• Construction and maintenance of gravel and forest roads.

Features

with the following options and attachments:

Diesel engine made by John Deere
6068HF485, 6 cylinder, 6.8 l displacement, 275 HP
Tier 3/EUROMOT III
Hydraulics made by Sauer Danfoss Tracks transmission: 2 x 75 cc
pumps Mulcher transmission: 1 x 130 cc pump
Steel tracks and undercarriage
Long-lasting steel tracks with low ground pressure
Width of each track: 660 mm – single grouser
Oscillating undercarriage
Full remote control system
Remote control range: upto 1000 m
Battery run time: upto 10 hrs
Reversible fan for the engine radiator (including compressor)
Air compressor with air tank and air sockets
Floating D-attach for H-frame instead of
regular pin-attach
Rock guards for lower rollers

Safety

CERTIFIED QUALITY

The resistance of both PT D:Mine against anti-personnel and anti-tank mines (up to 7 kg of explosive),

has been tested and certifi ed by CROMAC (Croatian Mine Action Centre), in accordance with

the CWA 15044:2009 standards.

HIGH RELIABILITY AND PROVEN DESIGN

PrimeTech vehicles are working in different fi elds of applications throughout the world: from Siberia

to Brazil, from Indonesia to Canada, they are used in both harsh weather and dangerous working

conditions.

Thanks to the proven design, PrimeTech vehicles stand for high reliability and reduced downtime.

The easy access to the main components of the PT tracked vehicles reduces the time and cost of

maintenance.

Privacy

EXCELLENT QUALITY-PRICE RATIO

For their great versatility of use, the considerable number of vehicles produced each year allows PrimeTech

to purchase the components in large amounts and consequently, to reduce the unit cost of

production without sacrifi cing the use of high quality components.

PRODUCT SUPPORT

Product support is guaranteed at worldwide level through the 5 branches of the FAE Group present in

Canada, USA, Germany, France and Australia – and thanks to a network of dealers covering almost

all countries.

The main components of PrimeTech vehicles are easy to fi nd because they are supplied by prestigious

brands (John Deere, CAT, Sauer Danfoss, Parker, Berco etc.) that are known throughout the

world and are present with their own service and support network that also guarantees parts availability

worldwide.
