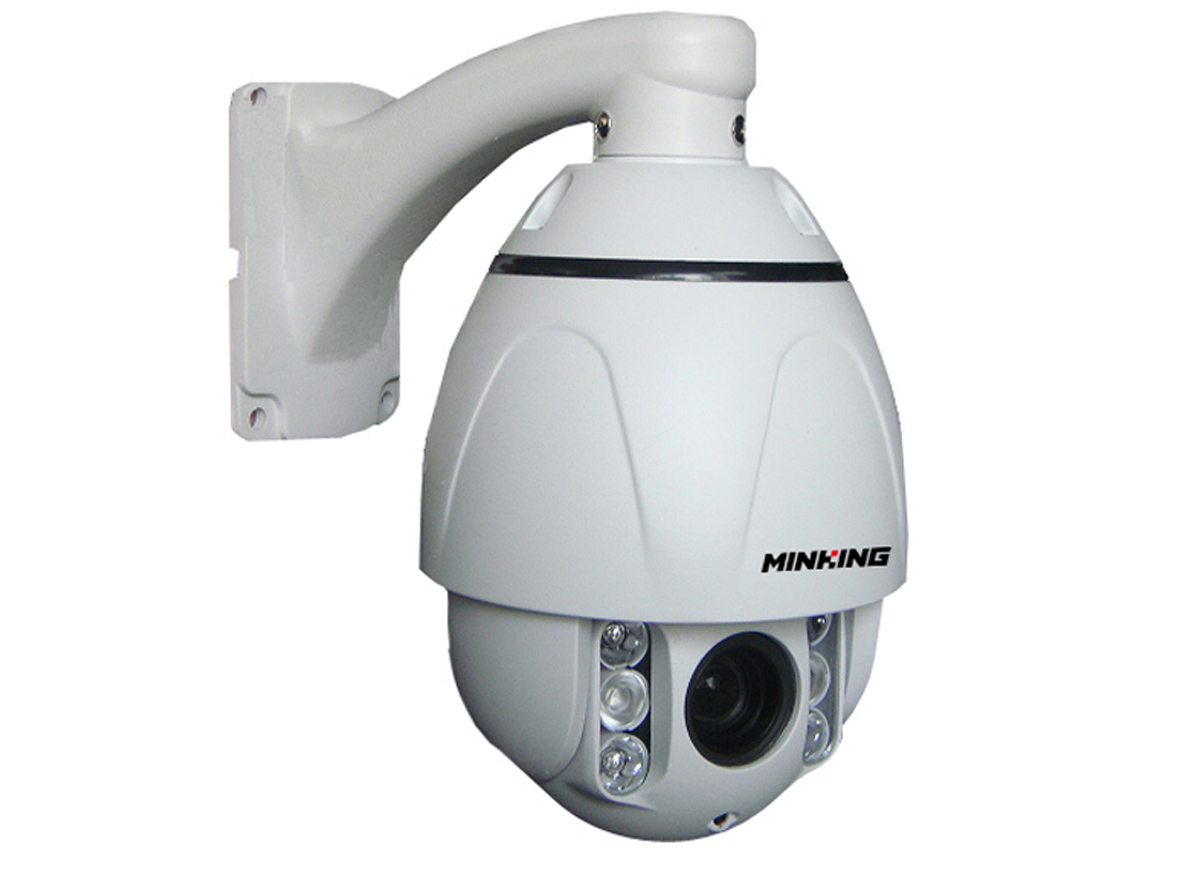

Video surveillance MG-HU-R Series Print Page Features Key Features Minking Mini IR PTZ Speed Dome Support 10X optical zoom IR Distance: 50m Full PTZ functions Pan 360° endless, Tilt 90°(0-90°) Protection grade IP66 Power DC12V or AC24V Privacy Model No. MG-HU105BF-R Camera Brand SAMSUNG SDM-100P Image device 1/4〞CCD Effective pixels 752(H)X582(V) Video output VBS 1.0Vp-p/75Ω White balance Auto AGC Auto Scanning frequency 15.625KHz(H) 50Hz(V) S/N Ratio >46dB Horizontal resolution 480TVL Electronic shutter 1/50~1/120,000s Minimum illumination 1.5Lux Zoom ratio Total 100X Optical 10X Digital 10X Mechanical/Electrical Pan speed 0°~150°/s Tilt speed 0°~90°/s Pan angle 360° Continuously Tilt angle 0°~90° Preset position 128 positions IR Distance 50m Tour 8 Pattern Yes Masking Yes Protection grade IP66 Communication Baud rate( 2400bps - 19200bps), RS485 control Protocols Support Pelco-D, Pelco-P etc. Relative humidity 90% without agglomeration Work temperature -35°C~+55°C Power supply DC12V or AC24V Weight 2Kg Gallery Request For More Information
