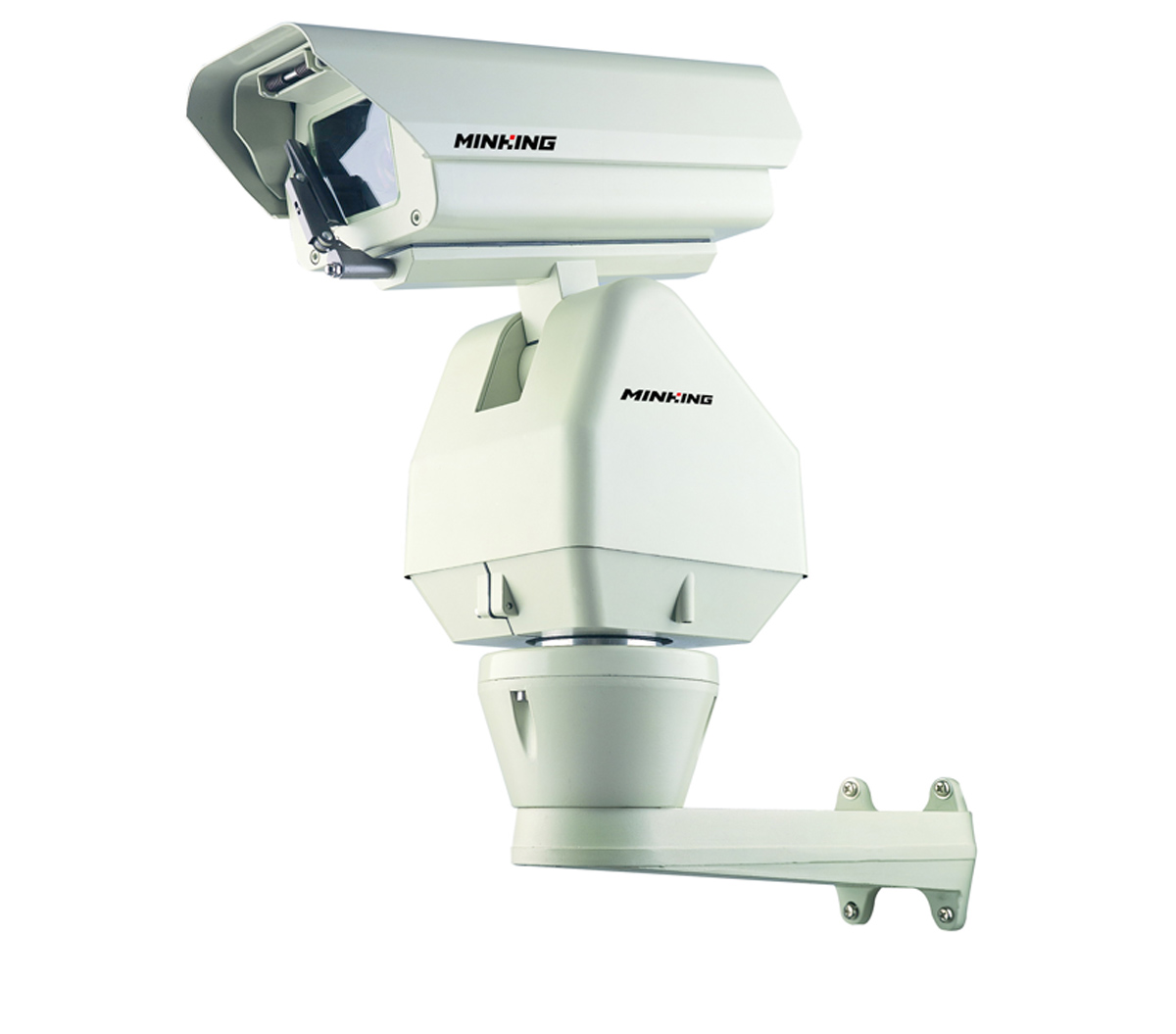

Video surveillance MG-TK35 Series Print Page Features Key Features Professional Positioning system Full PTZ functions Upto 37X zoom(low/high end flexible option) Upto to 999 Preset Position Pan speed: 140°/s Max. Pan 360° endless, Tilt 100° (+27°~-73°) With Wiper (Washer interface optional) Protection grade IP66 Power AC24V Privacy Model No. MG-TK3522B MG-TK3536B Camera Brand MINKING MG-S22A MINKING MG-S36A Image device 1/3" SONY EXview HAD-II 960H CCD Wide dynamic range Digital WDR ON/OFF Day/Night Auto*/Manual Effective pixels 976（H）×582（L）480K Synchronization system internal Video output CVBS:1.0Vp-p Y/C White balance Auto/Indoor/Outdoor/One Push/Atw/Manual Scanning frequency 15.625KHz(H) 50Hz(V) S/N Ratio >50dB Horizontal resolution 650TVL Electronic shutter 1/50～1/10,000s Minimum illumination 0.001 lx（ICR ON, 1/60Sec) other Function Gain, BLC, DSS, 3D-DNR, Exposure, Gamma, Masking, Defog etc. Focal length f＝4.7～103.4mm 4.5mm～162mm Zoom ratio Total 264X Total 432X Optical 22X Optical 36X Digital 12X Digital 12X Focus & Iris Auto / Manual Mechanical/Electrical Pan pre-position speed 140°/s Tilt pre-position speed 80°/s Pan speed 0°~140°/s Tilt speed 0°~55°/s Pan angle 360° Continuously Tilt angle +27°~-73° Alarm 1 alarm in， 1 alarm out Preset position Upto 999 positions Tour 10 Pattern 10 Communication Multi-protocol, Baud rate( 2400bps - 19200bps), RS485 control Relative humidity 90% without agglomeration Protection grade IP66 Work temperature -35°C~+55°C Power supply AC24V Weight 10Kg Gallery Request For More Information
