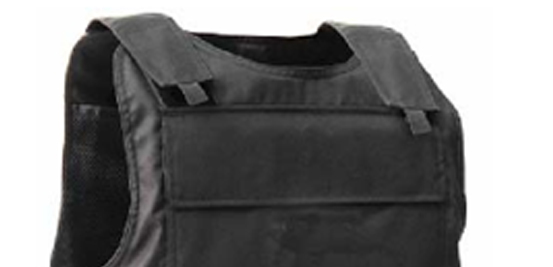

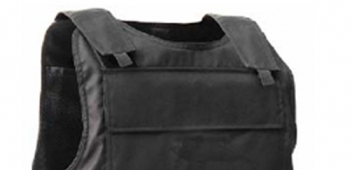

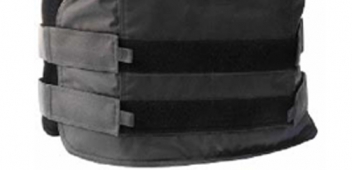

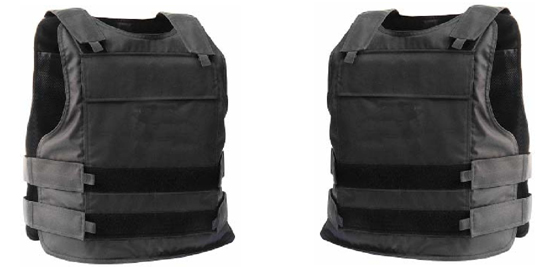

Tactical Concealable Vest -The Tactical Concealable
Vest is an enhanced version of Vest which can be worn
either overtly or covertly.

Service, Training, and Support

As an armour it has the following inclusive properties:

Resistance to perforation by bullets fired from Hand Guns, Carbines.
Resistance to Automatic/Burst fire from 9mm Sub-Machine guns.
Resistance to Rifle fire with the Plates fitted. [NIJ 111]
Minimises Blunt Trauma, behind the Body Armour
Very high attenuation of blunt impact energy. (Kicks, punches, bricks, etc.)
Lightweight, protective, armour.
Fully tested, Approved & Documented by many customers and authorities
Low Maintenance product
Outstanding resistance to chemical and biological attack.
Outstanding resistance to physical damage.

Very high tensile strength. (Greater than that of steel

Features

- Adjustable side closure design
- Area of ballistic coverage (large): 0.3m2
- Front to back wrap around ballistic protection
- 6 size adjustment straps

Safety

Warranty

The Armour material has a shelf life in excess of five years.

Therefore the Armour is warranted for 5 years.

The Covers are warranted for 1/2 year depending on the Cover material used.

Weight of Vest

Level-IIIA-9mm

2.8 kg(+/-3%) depending on the size

	MALE	FEMALE
Size	Chest	Chest	Waist
Small	34” – 36”	34”	26”
Medium	38” – 40”	36”	28”
Large	40” – 42”	38”	30”
X Large	42” – 44”	40”	32”
XX Large	44” – 46”	42”	34”
XXX Large	46” – 48”
Sizes outside of the range above are to be classed as ‘Special Make’ and will quoted on an individual basis.

General Specifications.

Lightness of weight.

The vests are constructed from Composite Double layers of Aramid fabric, which has been Quilt stitched, to give additional strength.

The Outer cover is made from Hard wearing Cordura fabric, which is Fire resistant and is backed by a special wicking fabric to give a comfortable, next to skin or over shirt finish. This also works as a significant heat Management System

The Vest and Plates [when fitted] have multi hit protection

The Vest protects the Front, Back, Over Shoulder, Sides, as standard.

All covers are removable, for washing and cleaning.

The Vests as designed, are very easy to wear and allow the wearer to perform all the normal duties associated with Military and Police operations.

Vest colours and badges are to customer specification.

The Vests are the lightest protection available, meeting the NIJ [USA] standard.

Vests are available in Male and Female sizes, from 38” chest to 52” as standard, other sizes to order.

Due to the technical benefits of the material incorporated into these vests, there is no requirement to fit additional protective trauma shields.

Optional Accessories

- Ballistic: Collars and Groin Protectors.
- Pockets
- Radio Holders
- Service Belt Loops
- Armour Carry Bag

Colors

Small to XXLarge
