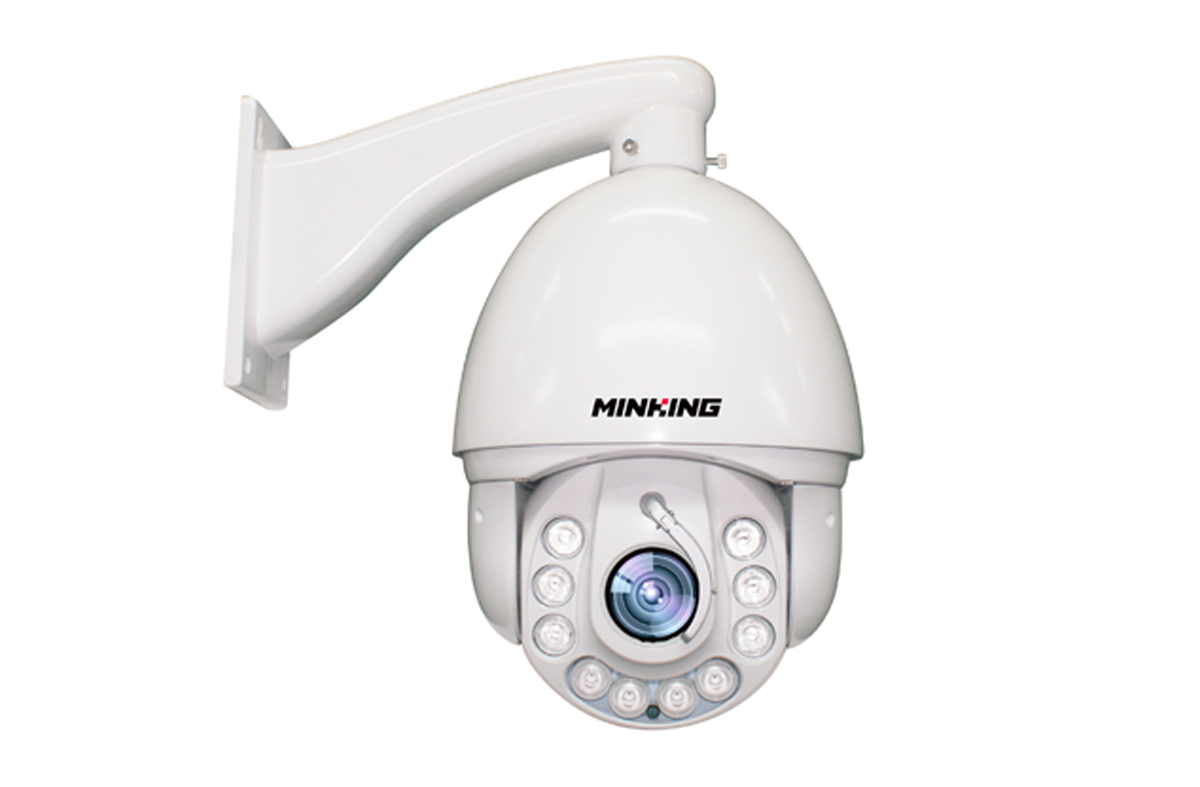

MG-SIR75 Series

Print Page

Model No.	MG-SIR7522	MG-SIR7536
Camera
Brand	MINKING MG-S22A	MINKING MG-S36A
Image device	1/3" SONY EXview HAD-II 960H CCD
Wide dynamic range	Digital WDR ON/OFF
Day/Night	Auto*/Manual
Effective pixels	976（H）×582（L）480K
Synchronization system	internal
Video output	CVBS:1.0Vp-p Y/C
White balance	Auto/Indoor/Outdoor/One Push/Atw/Manual
Scanning frequency	15.625KHz(H) 50Hz(V)
S/N Ratio	>50dB
Horizontal resolution	650TVL
Electronic shutter	1/50～1/10,000s
Minimum illumination	0.001 lx（ICR ON, 1/60Sec)
other Function	Gain, BLC, DSS, 3D-DNR, Exposure, Gamma, Masking, Defog etc.
Focal length	f＝4.7～103.4mm	4.5mm～162mm
Zoom ratio	Total 264X	Total 432X
	Optical 22X	Optical 36X
	Digital 12X	Digital 12X
Focus & Iris	Auto / Manual
Mechanical/Electrical
Pan speed	0°~150°/s
Tilt speed	0°~90°/s
Pan angle	360° Continuously
Tilt angle	0°~90°
IR distance	120m
Preset position	128 positions (±0.1°)
Tour	8
Pattern	Yes
Auto-scanning	Yes
Protection grade	IP66
Communication	Baud rate( 2400bps - 19200bps), RS485 control
Protocols	Support Pelco-D, Pelco-P
Relative humidity	90% without agglomeration
Work temperature	-35°C~+55°C
Power supply	DC12V
Weight	4.5Kg
